Features

• 104hp wide with two 3U rows and a 1U row.
• Powder coated aluminum construction
• VESA mount compatible (100mm x 100mm)
• Plastic handle for easy mobility
• Metal feet can be installed to support multiple angles of jamming.
• Secure latching lid with enough depth to keep your patches patched

Expandable

• Lid - when you're ready to add more space, the lid can be expanded to be another 104hp x 7U.  You can add another set of rails, power supply and power jack and double your available space. (Kit available)
• Metal feet - The metal feet can have a pair of rails and rack mounted power added to support another 3U row of 104hp.  (Kit available in future)

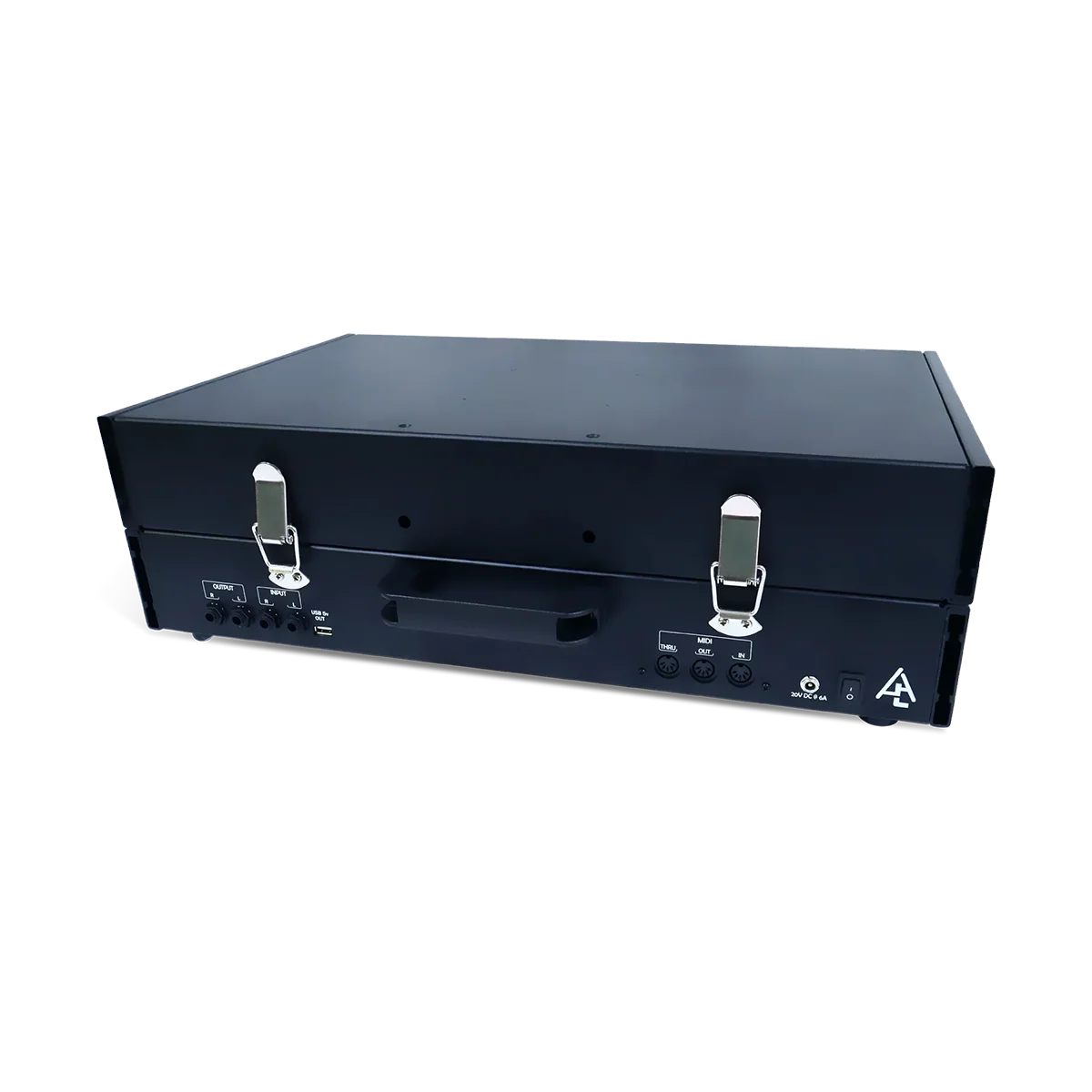

Connectivity

• Audio jacks - set of four jacks for stereo in and stereo out.
• MIDI jacks - DIN jacks to support IN, OUT, and THRU MIDI.
• USB power - can be used for a lamp to light your case or to charge your phone while recording your set.

Power

• +12V - 3A (with plenty of allowance for in-rush current)
• -12V - 3A
• +5V - 3A (shared with USB power)
• 36 shrouded power headers
